J and K are expressed in terms of D and Qp. Here when you observe from the truth table shown below the next state output is equal to the D input.

الفصل خزامى غير واضح Tabla De Exitacion Flip Flop D Oregonpaternityproject Org

D is the external input and J and K are the actual inputs of the flip flop.

Flip flop d tabla. Luego encontramos la condición set del flip-flop. When D 0 the inputs of SR flip flop will become S 0 R 1. Thus D flip flop is also known as delay flip flop. En la tabla de la verdad se define la operación del flip-flop. The positive edge D type flip flop which changes its OP according to the IP with the ve transition of the clock pulse of the flip flop is a positive edge triggered flip-flop. The truth table for D flip-flop is as shown in the table.

The D Data is the input state for the D flip-flop. The excitation table of D flip flop is derived from its truth table. Hence the characteristic equation for D flip flop is Qn1 D. Ini berisi 20 pin yang memiliki output tiga keadaan. However this would be pointless since the output of the flip flop would always change on every pulse applied to this data input. Characteristics table is determined by the truth table of any circuit it basically takes Q n S and R as its inputs and Q n1 as output.

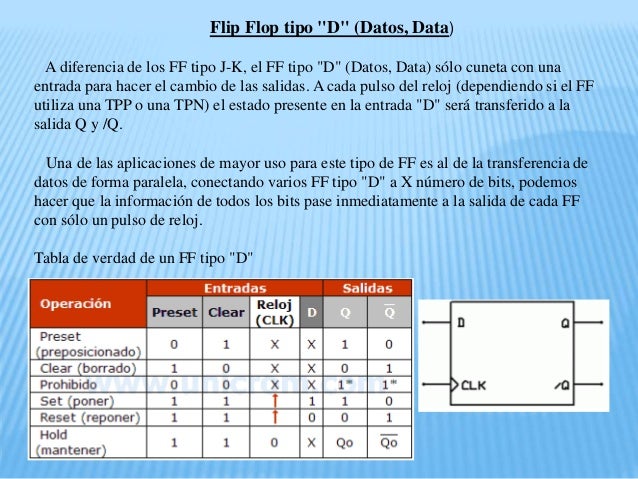

Shows what input is necessary to generate a given output Different view of flip-flop operation Inputs. Control D or T QQD 000How do we get a new state of 0 with a D flip-flop. Flip flops tablas de verdad. But the important thing to consider is all these can occur only in the presence of the clock signal. In D flip flop the single input D is referred to as the Data input. Find the Boolean expressions for the inputs of the given flip-flop In this case the given flip-flop is D flip-flop.

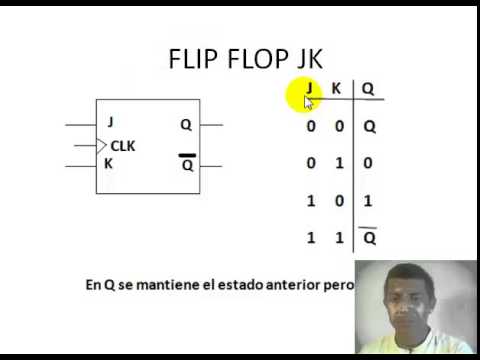

When the data input is set to 1 the flip flop would be set and when it is set to 0 the flip flop would change and become reset. While dealing with the characteristics table the clock is high for all cases ie CLK1. JK Flip Flop One of the most useful and versatile flip flop is the JK flip flop the unique features of a JK flip flop are. Write the conversion table. Looking at the truth table for the D flip flop we can realize that Qn1 function follows D input at the positive-going edges of the clock pulses. Q n1 represents the next state while Q n represents the present state.

According to the table based on the inputs the output changes its state. So it is very simple to construct the excitation table. Full Form of D flip flop. The conversion table which is a combination of truth table and excitation table to implement a JK flip-flop using D flip-flop is as follows Step 4. Setiap flip Flop memiliki pin input D dan output Q yang berbeda. D flip-flop or Data flip flop is a type of flip Flop that has only one data input that is D and one clock pulse input with two outputs Q and Q bar.

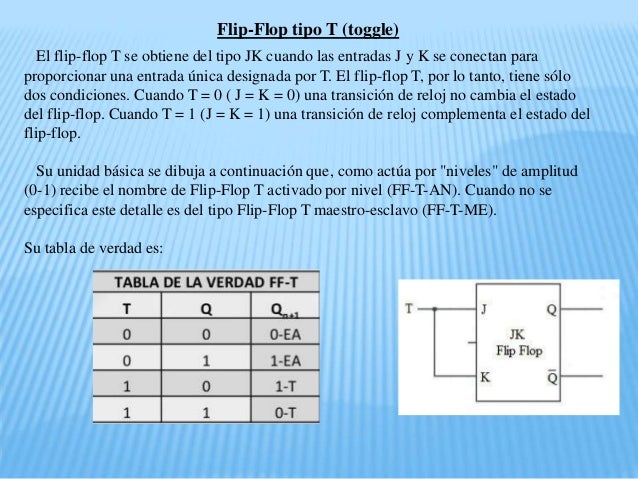

Flip Flop ini disebut juga flip flop tunda karena ketika data masukan dimasukkan ke dalam flip-flop d keluaran mengikuti penundaan data masukan sebesar satu pulsa clock. The logic symbol for the D flip-flop is shown in the figure. The four combination conversion table the K-maps for J and K in terms of D and Qp and the logic diagram showing the conversion from JK to D are given below. Aquí un nivel BAJO o cero lógico activa la entrada de set S. A basic flip-flop can be constructed using four-NAND or four-NOR gates. D flip-flop T flip-flop DQQOperationTQQOperation 000reset 000hold 010reset 011hold 101set 101toggle 111set 110toggle Excitation table.

The excitation table is constructed in the same way as explained for SR flip flop. This type of flip-flop is known as a gated D-latch. Truth table of D Flip-Flop. Operation and truth table of D flip-flop If D 1 then the inputs for the SR flip flop are S 1 R 0. Lécriture de D se fait à chaque flanc montant de lhorloge doù lappellation D pour Delay. However the output Qn1 is delayed by one clock period.

Flip flop tipe d oktal tersedia secara komersial sebagai sirkuit Ingratiated. The circuit can be made to change state by signals applied to one or more control inputs and will have one or two outputs. D flip flop. The excitation table for D flip flop is very simply derived given as under. It has high-speed performance with low power consumption that is because it is widely in use. This Flip Flop is also called a delay flip flop because when the input data is provided into the d flip-flop the output follows the input data delay by one clock pulse.

JK Flip Flop to D Flip Flop. Cette bascule peut être utilisée comme. In electronics a flip-flop or latch is a circuit that has two stable states and can be used to store state information a bistable multivibrator. Semua flip-flop terutama dapat dikontrol oleh jam dan mengaktifkan pin. Characteristics table for SR Nand flip-flop. D flip-flop atau Data flip flop adalah jenis flip Flop yang hanya memiliki satu input data yaitu D dan satu input pulsa clock dengan dua output Q dan Q bar.

D and Qp make four combinations. The conversion table which is a combination of truth table and excitation table to implement a D flip-flop using T. The Q and Q represents the output states of the flip-flop. Esta pone la salida normal Q al nivel alto o 1. It is the basic storage element in sequential logic. Flip-flop is a circuit that maintains a state until directed by input to change the state.

La bascule D flip-flop Elle est réalisée au moyen de deux verrous D MasterSlave piloté par un signal dhorloge. Primero encontramos el estado prohibido en donde ambas salidas están a 1 o nivel ALTO. When you look at the truth table of SR flip flop the next state output is logic 1 which will SET the flip flop. If the J and K input are both at 1 and the clock pulse is applied then the output will change state regardless of its previous condition. Logic diagrams and truth tables of the different types of flip-flops are as follows. The D flip flop obtains the destination from its capacity to manage data into its internal storage.
